ADG1211YCPZ-REEL7

ADG1211YCPZ-REEL7 Overview

This product is manufactured by Analog Devices Inc.. Our product has a 4 Switch number of switches. This product has a 4 x SPST configuration. Maximum switch voltage is 15 V Our product has a maximum 130 ns. Our product has a maximum 115 ns. 12 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-16 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 0.83 mm. 3 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 380 uA 1. The maximum dual supply voltage is +/- 16.5 V. +/- 4.5 V minimum dual supply voltage Yes regarding Moisture Sensitivity 150 uW Analog Switch ICs product type 1500 of 100 Switch ICs as subcategory Supply Voltage - Max: 16.5 V Supply Voltage - Min: 5 V Maximum continuous current: 25 mA 1. 0.000716 oz of Unit Weight

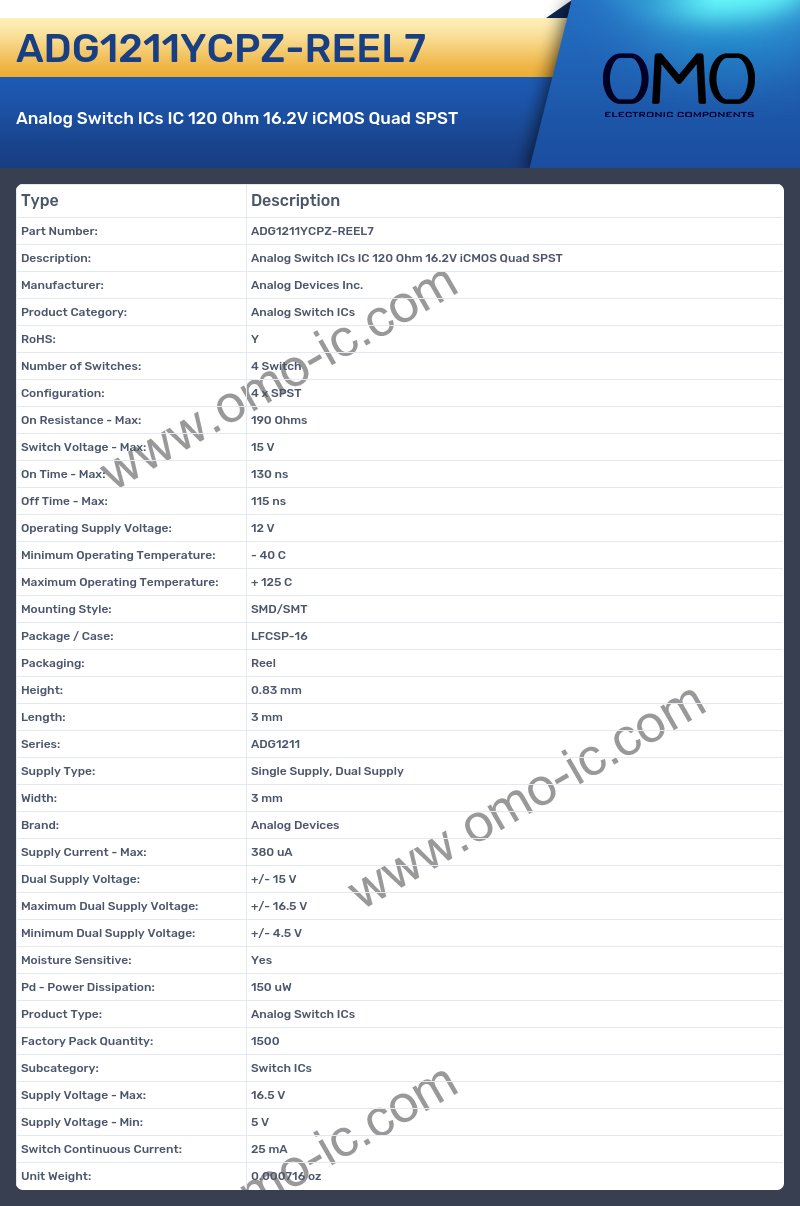

ADG1211YCPZ-REEL7 Image

ADG1211YCPZ-REEL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 4 Switch
• Configuration: 4 x SPST
• On Resistance - Max: 190 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 130 ns
• Off Time - Max: 115 ns
• Operating Supply Voltage: 12 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-16
• Packaging: Reel
• Height: 0.83 mm
• Length: 3 mm
• Series: ADG1211
• Supply Type: Single Supply, Dual Supply
• Width: 3 mm
• Brand: Analog Devices
• Supply Current - Max: 380 uA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 150 uW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 1500
• Subcategory: Switch ICs
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 5 V
• Switch Continuous Current: 25 mA
• Unit Weight: 0.000716 oz
