ADC12V170CISQ/NOPB

ADC12V170CISQ/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WQFN-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 170 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.8 mm. +/- 1 V Input Voltage 7 mm long The output type is LVDS. Analog to Digital Converters This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. 3.3 %/FSR is 0.2%. INL is within 1.9 LSB Yes regarding Moisture Sensitivity 3.3 V operating supply voltage range 5.2 W ADCs - Analog to Digital Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.003527 oz of Unit Weight

ADC12V170CISQ/NOPB Image

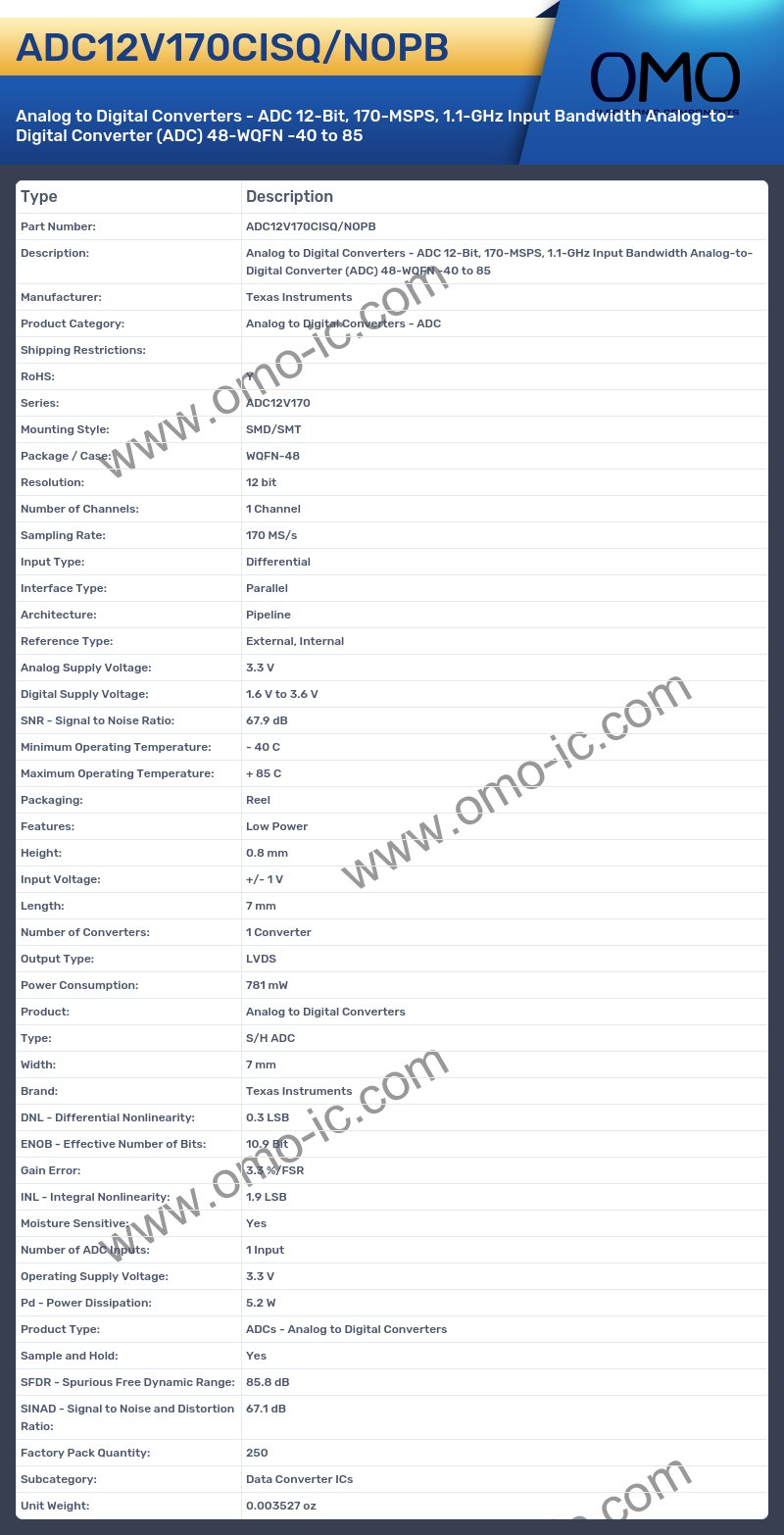

ADC12V170CISQ/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• Shipping Restrictions:
• RoHS: Y
• Series: ADC12V170
• Mounting Style: SMD/SMT
• Package / Case: WQFN-48
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 170 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 1.6 V to 3.6 V
• SNR - Signal to Noise Ratio: 67.9 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Features: Low Power
• Height: 0.8 mm
• Input Voltage: +/- 1 V
• Length: 7 mm
• Number of Converters: 1 Converter
• Output Type: LVDS
• Power Consumption: 781 mW
• Product: Analog to Digital Converters
• Type: S/H ADC
• Width: 7 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: 0.3 LSB
• ENOB - Effective Number of Bits: 10.9 Bit
• Gain Error: 3.3 %/FSR
• INL - Integral Nonlinearity: 1.9 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 5.2 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SFDR - Spurious Free Dynamic Range: 85.8 dB
• SINAD - Signal to Noise and Distortion Ratio: 67.1 dB
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.003527 oz
