ADADC80-12

ADADC80-12 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-32 SB package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Single-Ended input type Interface Type: Parallel SAR architecture Internal is the reference type. The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Bulk packaging for easy dispensing The height of the product is 4.32 mm. 5 V/10 V, +/- 2.5 V/+/- 5 V/+/- 10 V Input Voltage 41.66 mm long Analog Devices is a trusted brand for quality electronics The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 0.1 %FSR is 0.2%. INL is within +/- 0.012 % FSR 5 V, 12 V or 15 V operating supply voltage range ADCs - Analog to Digital Converters product type 1 of 100 Data Converter ICs as subcategory

ADADC80-12 Image

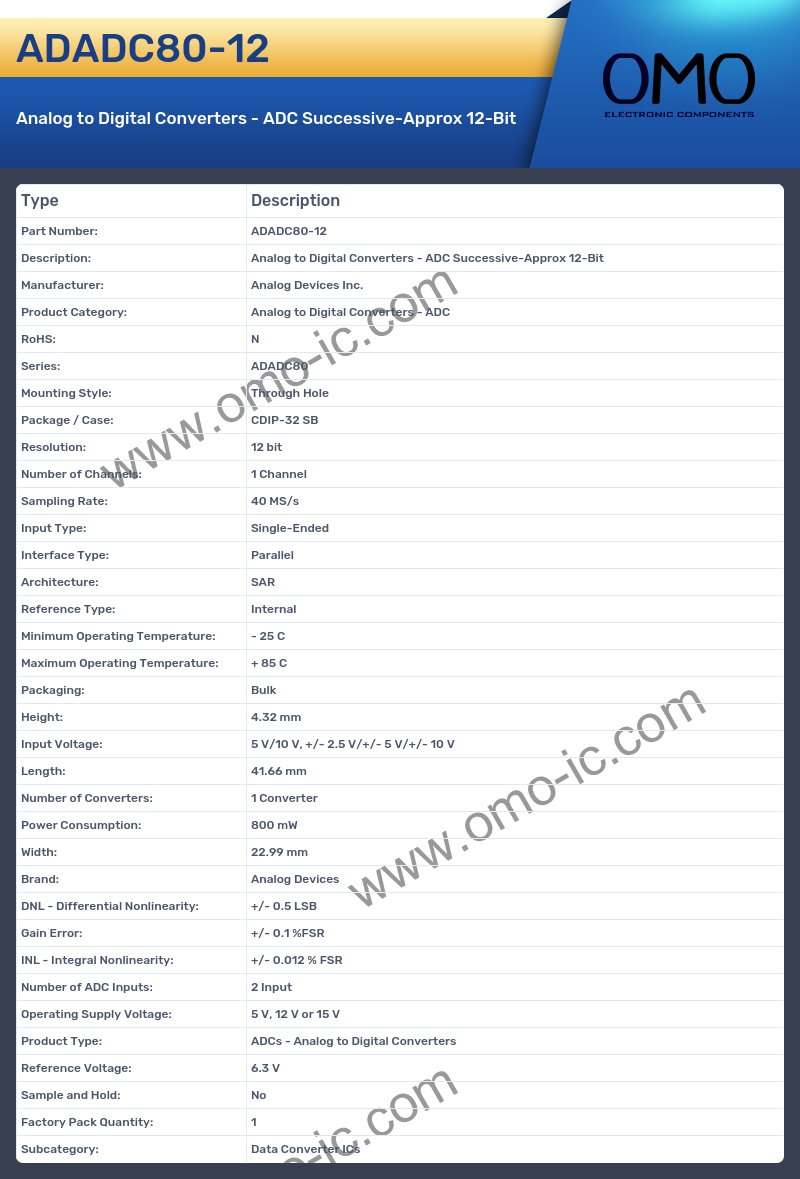

ADADC80-12 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: ADADC80
• Mounting Style: Through Hole
• Package / Case: CDIP-32 SB
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 40 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: Internal
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Packaging: Bulk
• Height: 4.32 mm
• Input Voltage: 5 V/10 V, +/- 2.5 V/+/- 5 V/+/- 10 V
• Length: 41.66 mm
• Number of Converters: 1 Converter
• Power Consumption: 800 mW
• Width: 22.99 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• Gain Error: +/- 0.1 %FSR
• INL - Integral Nonlinearity: +/- 0.012 % FSR
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 5 V, 12 V or 15 V
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 6.3 V
• Sample and Hold: No
• Factory Pack Quantity: 1
• Subcategory: Data Converter ICs
