AD9268BCPZ-105

AD9268BCPZ-105 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFN-64 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 105 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. DC851A-S, DC851A-T is a versatile development platform for hardware and software The 0.6 LSB, ensuring accurate and precise analog-to-digital conversion. 0.5 %/FS is 0.2%. INL is within 1.5 LSB 540 mW ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory 1. 0.023986 oz of Unit Weight

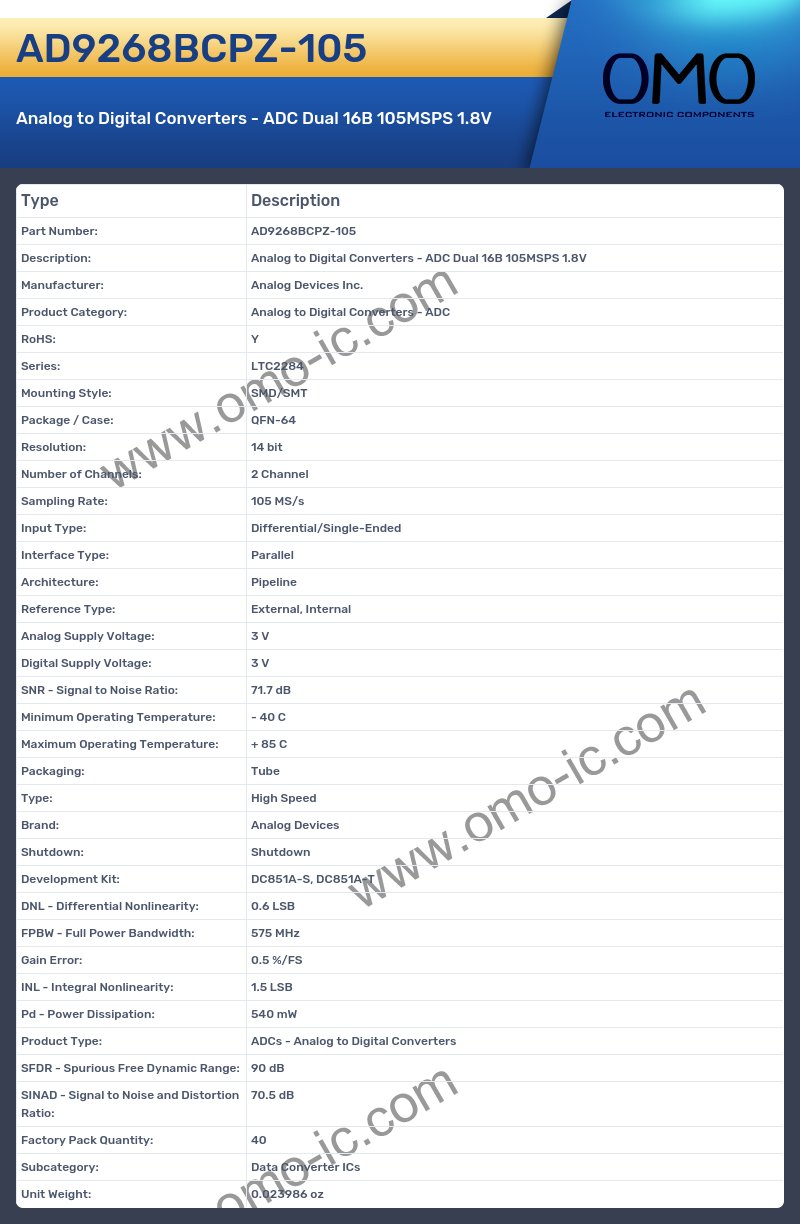

AD9268BCPZ-105 Image

AD9268BCPZ-105 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC2284
• Mounting Style: SMD/SMT
• Package / Case: QFN-64
• Resolution: 14 bit
• Number of Channels: 2 Channel
• Sampling Rate: 105 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3 V
• Digital Supply Voltage: 3 V
• SNR - Signal to Noise Ratio: 71.7 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Type: High Speed
• Brand: Analog Devices
• Shutdown: Shutdown
• Development Kit: DC851A-S, DC851A-T
• DNL - Differential Nonlinearity: 0.6 LSB
• FPBW - Full Power Bandwidth: 575 MHz
• Gain Error: 0.5 %/FS
• INL - Integral Nonlinearity: 1.5 LSB
• Pd - Power Dissipation: 540 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 90 dB
• SINAD - Signal to Noise and Distortion Ratio: 70.5 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• Unit Weight: 0.023986 oz
