AD829JN Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. Bandwidth at -3 dB is 120 MHz Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is General Purpose Amplifier. The height of the product is 3.43 mm. No input type 9.27 mm long The output type is No. Video Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 9 V to 36 V operating supply voltage range 1.3 W Video Amplifiers product type 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

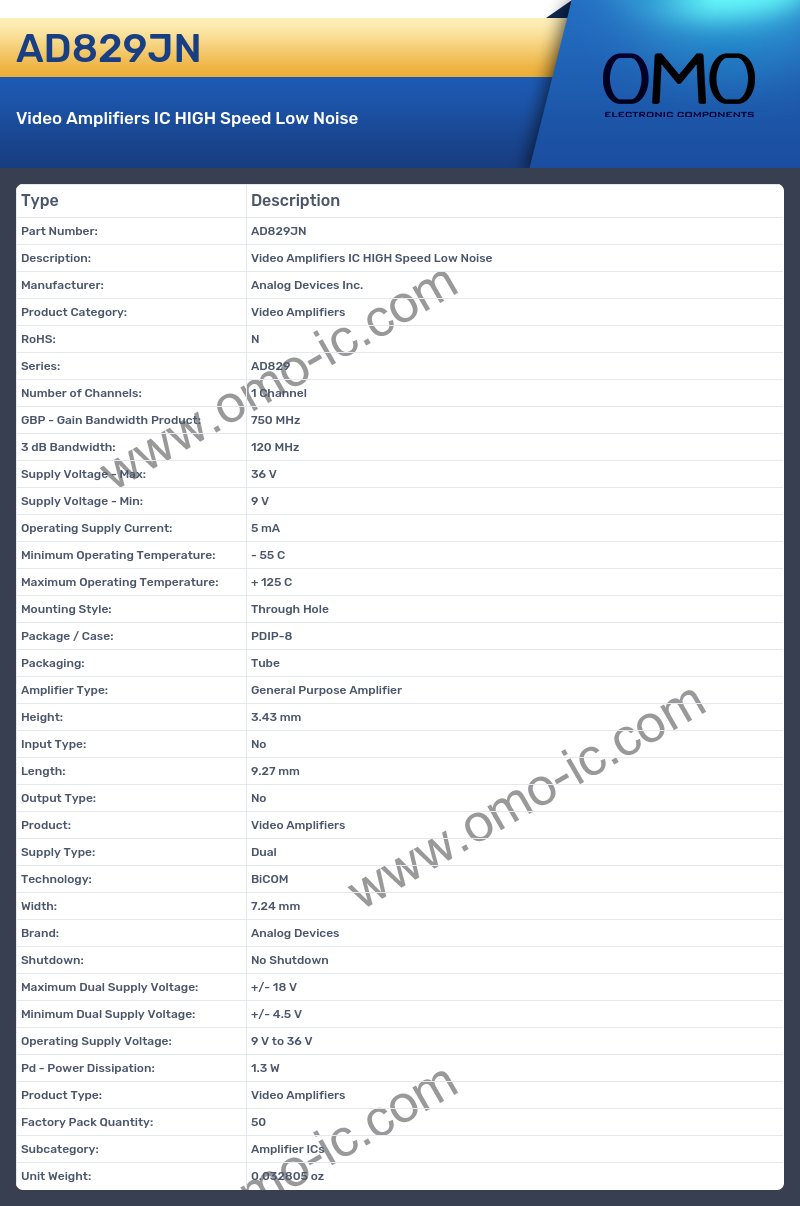

AD829JN Image

AD829JN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: N
• Series: AD829
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 750 MHz
• 3 dB Bandwidth: 120 MHz
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Operating Supply Current: 5 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Height: 3.43 mm
• Input Type: No
• Length: 9.27 mm
• Output Type: No
• Product: Video Amplifiers
• Supply Type: Dual
• Technology: BiCOM
• Width: 7.24 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 9 V to 36 V
• Pd - Power Dissipation: 1.3 W
• Product Type: Video Amplifiers
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Unit Weight: 0.032805 oz
