AD8224ACPZ-WP

AD8224ACPZ-WP Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 2 Channel for efficient performance. This product has a 94 dB of 50 dB, ensuring reliable signal acquisition. This product has an 25 pA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-16 package/case type is utilized by this product. Waffle packaging for easy dispensing The amplifier type is Instrumentation Amplifier. The height of the product is 0.83 mm. 3 mm long Instrumentation Amplifiers Supply Type: Single, Dual Analog Devices is a trusted brand for quality electronics Bandwidth at -3 dB is 1.5 MHz AD8224-EVALZ is a versatile development platform for hardware and software Gain ratio is 1 V/V to 1000 V/V. Yes regarding Moisture Sensitivity 4.5 V to 36 V operating supply voltage range Instrumentation Amplifiers product type This product has a 96 dB of 50 dB, providing reliable power supply noise rejection. 64 of 100 Amplifier ICs as subcategory 1. 0.018484 oz of Unit Weight

AD8224ACPZ-WP Image

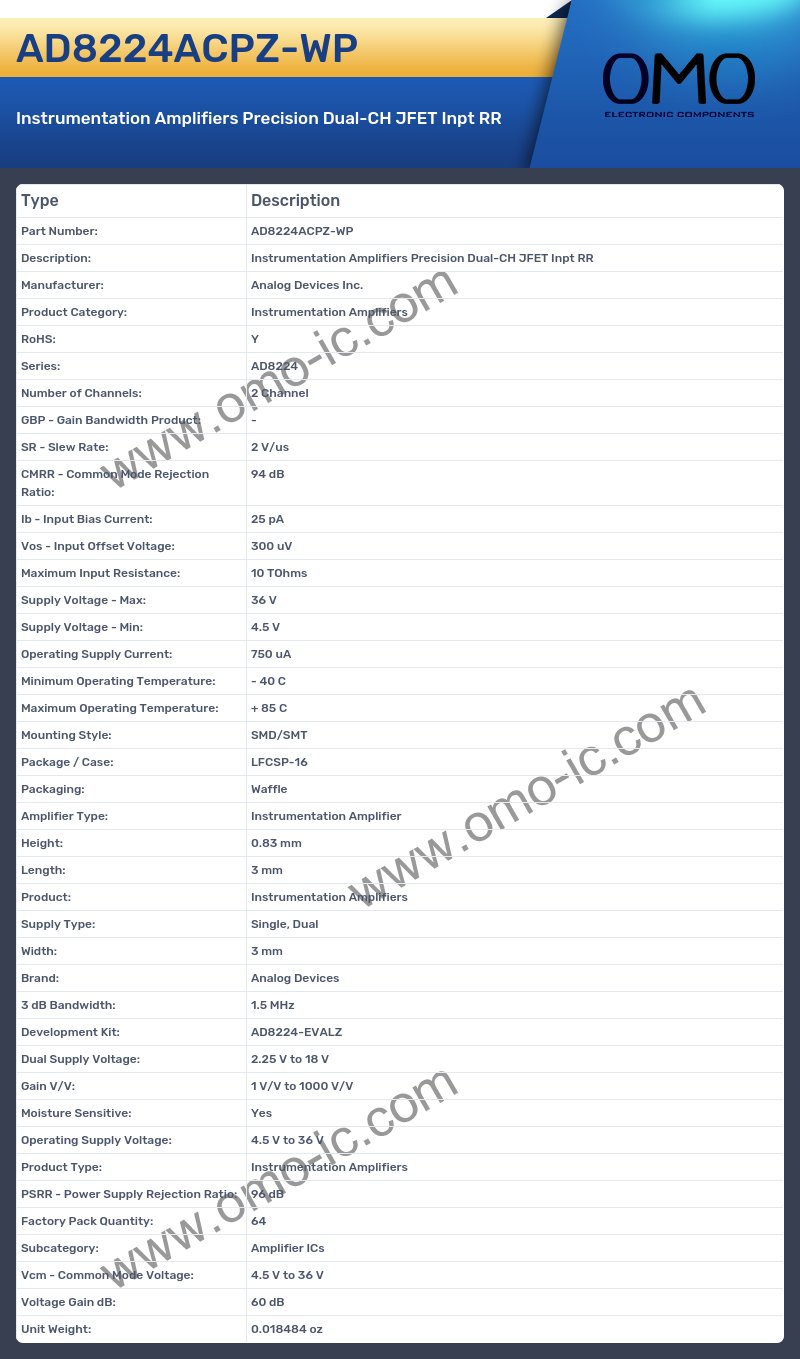

AD8224ACPZ-WP Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: AD8224
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 2 V/us
• CMRR - Common Mode Rejection Ratio: 94 dB
• Ib - Input Bias Current: 25 pA
• Vos - Input Offset Voltage: 300 uV
• Maximum Input Resistance: 10 TOhms
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 750 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-16
• Packaging: Waffle
• Amplifier Type: Instrumentation Amplifier
• Height: 0.83 mm
• Length: 3 mm
• Product: Instrumentation Amplifiers
• Supply Type: Single, Dual
• Width: 3 mm
• Brand: Analog Devices
• 3 dB Bandwidth: 1.5 MHz
• Development Kit: AD8224-EVALZ
• Dual Supply Voltage: 2.25 V to 18 V
• Gain V/V: 1 V/V to 1000 V/V
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.5 V to 36 V
• Product Type: Instrumentation Amplifiers
• PSRR - Power Supply Rejection Ratio: 96 dB
• Factory Pack Quantity: 64
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: 4.5 V to 36 V
• Voltage Gain dB: 60 dB
• Unit Weight: 0.018484 oz
