AD8209AWBRMZ

AD8209AWBRMZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 50 nA of 5 uA for precise signal processing. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. MSOP-8 package/case type is utilized by this product. The AEC-Q100 Qualification Tube packaging for easy dispensing The amplifier type is Differential Amplifier. The output type is Buffered. Current Sense Amplifiers Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. AD8209A-EVALZ is a versatile development platform for hardware and software 0.3 % is 0.2%. Gain ratio is 14 V/V. Current Sense Amplifiers product type This product has a 80 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.001587 oz of Unit Weight

AD8209AWBRMZ Image

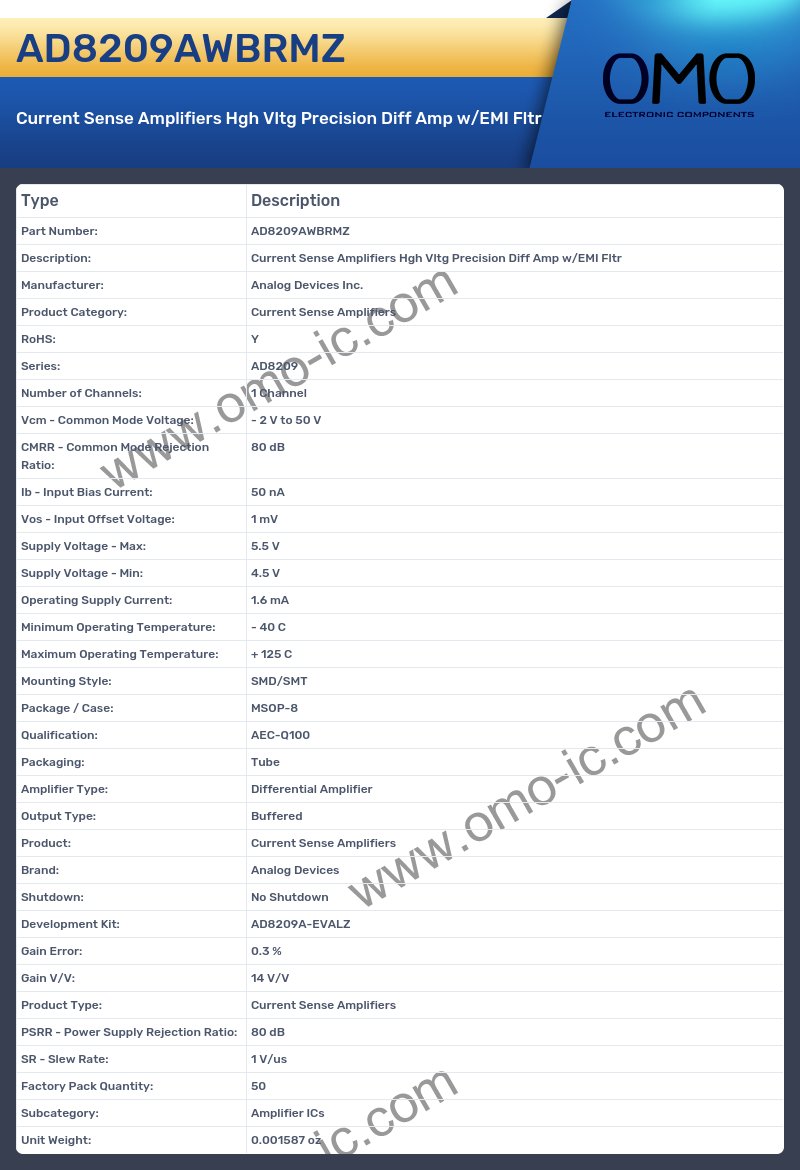

AD8209AWBRMZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Current Sense Amplifiers
• RoHS: Y
• Series: AD8209
• Number of Channels: 1 Channel
• Vcm - Common Mode Voltage: - 2 V to 50 V
• CMRR - Common Mode Rejection Ratio: 80 dB
• Ib - Input Bias Current: 50 nA
• Vos - Input Offset Voltage: 1 mV
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 1.6 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: MSOP-8
• Qualification: AEC-Q100
• Packaging: Tube
• Amplifier Type: Differential Amplifier
• Output Type: Buffered
• Product: Current Sense Amplifiers
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: AD8209A-EVALZ
• Gain Error: 0.3 %
• Gain V/V: 14 V/V
• Product Type: Current Sense Amplifiers
• PSRR - Power Supply Rejection Ratio: 80 dB
• SR - Slew Rate: 1 V/us
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Unit Weight: 0.001587 oz
