AD8029ARZ

AD8029ARZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 0.7 uA of 5 uA for precise signal processing. Supply Voltage - Max: 12 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Voltage Feedback. The height of the product is 1.75 mm. Rail to Rail input type 5 mm long The output type is Rail to Rail. Operational Amplifiers Supply Type: Single, Dual Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. Voltage Feedback Topology AD8029AR-EBZ is a versatile development platform for hardware and software 1. The maximum dual supply voltage is +/- 6 V. +/- 1.35 V minimum dual supply voltage 2.7 V to 12 V operating supply voltage range Op Amps - High Speed Operational Amplifiers product type This product has a 80 dB of 50 dB, providing reliable power supply noise rejection. 80 ns settling time 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

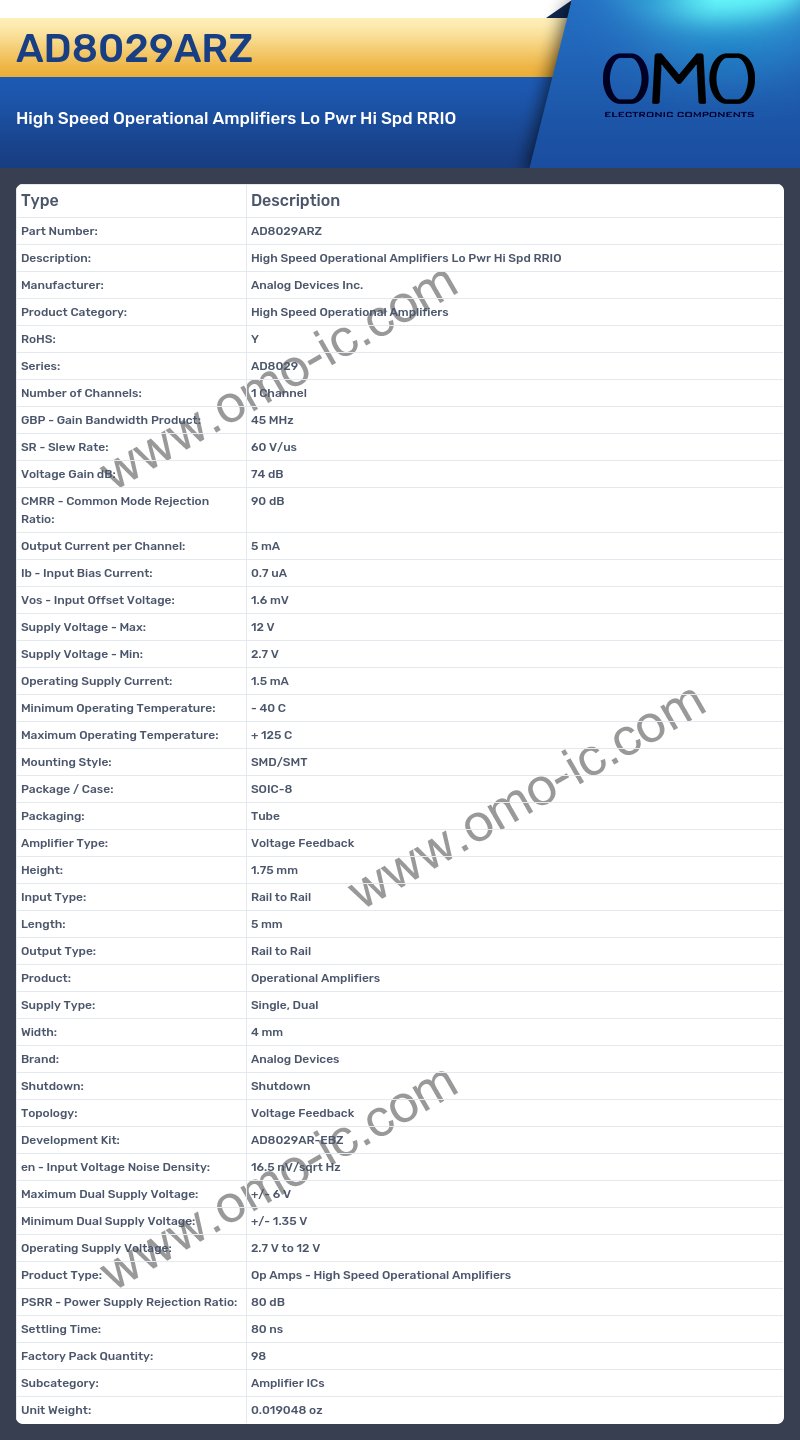

AD8029ARZ Image

AD8029ARZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: High Speed Operational Amplifiers
• RoHS: Y
• Series: AD8029
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 45 MHz
• SR - Slew Rate: 60 V/us
• Voltage Gain dB: 74 dB
• CMRR - Common Mode Rejection Ratio: 90 dB
• Output Current per Channel: 5 mA
• Ib - Input Bias Current: 0.7 uA
• Vos - Input Offset Voltage: 1.6 mV
• Supply Voltage - Max: 12 V
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 1.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Amplifier Type: Voltage Feedback
• Height: 1.75 mm
• Input Type: Rail to Rail
• Length: 5 mm
• Output Type: Rail to Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 4 mm
• Brand: Analog Devices
• Shutdown: Shutdown
• Topology: Voltage Feedback
• Development Kit: AD8029AR-EBZ
• en - Input Voltage Noise Density: 16.5 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 1.35 V
• Operating Supply Voltage: 2.7 V to 12 V
• Product Type: Op Amps - High Speed Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 80 dB
• Settling Time: 80 ns
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Unit Weight: 0.019048 oz
