AD7714ANZ-5 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-24 package/case type is utilized by this product. This product is equipped with 5 Channel for efficient performance. The sampling rate of this product is 1 kS/s. Differential/Pseudo-Differential input type Interface Type: 3-Wire, SPI Sigma-Delta architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tube packaging for easy dispensing The height of the product is 3.3 mm. 2.5 V, +/- 2.5 V Input Voltage 31.75 mm long Analog Devices is a trusted brand for quality electronics EVAL-AD7714-3EBZ is a versatile development platform for hardware and software +/- 0.003 %FSR is 0.2%. INL is within +/- 0.0015 % FSR 5 V operating supply voltage range 7 mW ADCs - Analog to Digital Converters product type 15 of 100 Data Converter ICs as subcategory 1. 0.131925 oz of Unit Weight

AD7714ANZ-5 Image

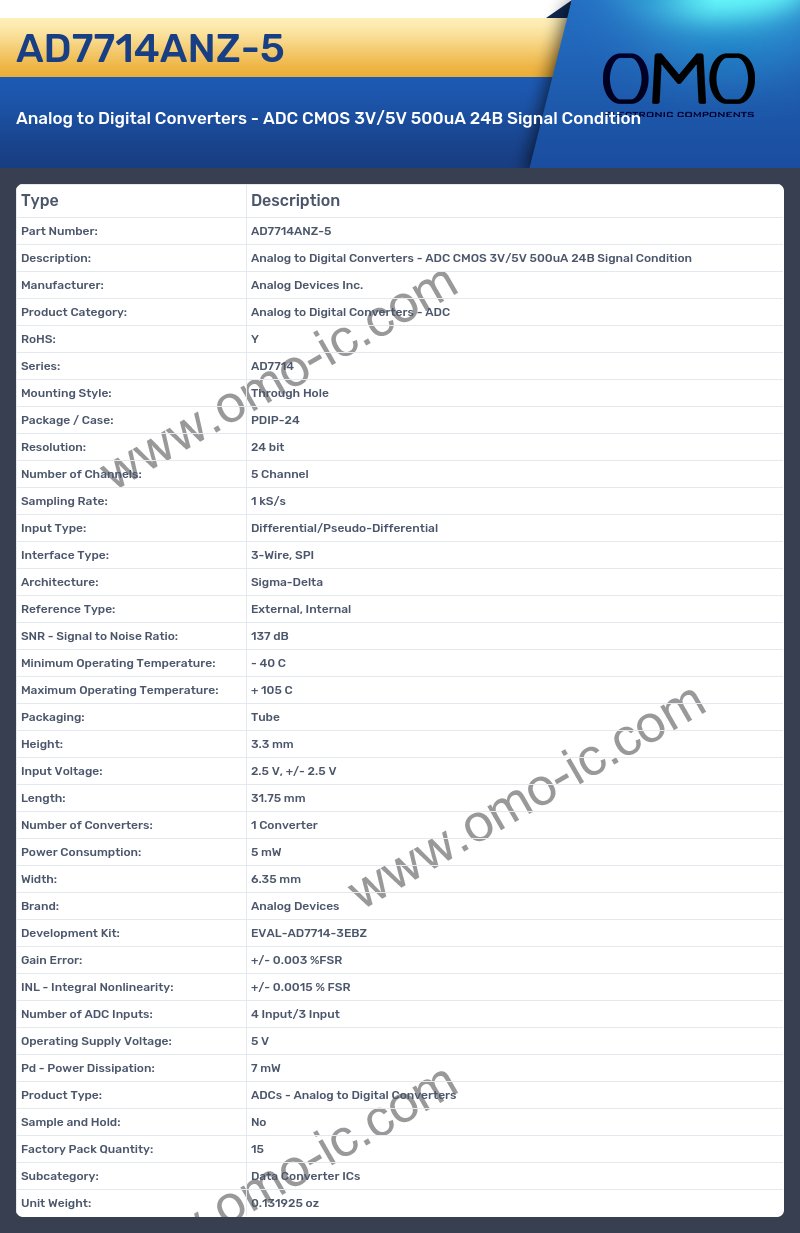

AD7714ANZ-5 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7714
• Mounting Style: Through Hole
• Package / Case: PDIP-24
• Resolution: 24 bit
• Number of Channels: 5 Channel
• Sampling Rate: 1 kS/s
• Input Type: Differential/Pseudo-Differential
• Interface Type: 3-Wire, SPI
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 137 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Tube
• Height: 3.3 mm
• Input Voltage: 2.5 V, +/- 2.5 V
• Length: 31.75 mm
• Number of Converters: 1 Converter
• Power Consumption: 5 mW
• Width: 6.35 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7714-3EBZ
• Gain Error: +/- 0.003 %FSR
• INL - Integral Nonlinearity: +/- 0.0015 % FSR
• Number of ADC Inputs: 4 Input/3 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 7 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 15
• Subcategory: Data Converter ICs
• Unit Weight: 0.131925 oz
