AD7687BCPZRL7

AD7687BCPZRL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-10 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 250 kS/s. Differential input type Interface Type: 3-Wire, SPI SAR architecture External is the reference type. This product requires an 2.3 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.73 mm. +/- 5 V Input Voltage 3 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. EVAL-AD7687SDZ is a versatile development platform for hardware and software The 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2 LSB is 0.2%. INL is within 1.5 LSB 5 V operating supply voltage range 12.5 mW ADCs - Analog to Digital Converters product type 1500 of 100 Data Converter ICs as subcategory THD is as low as - 118 dB. 1. 0.000716 oz of Unit Weight

AD7687BCPZRL7 Image

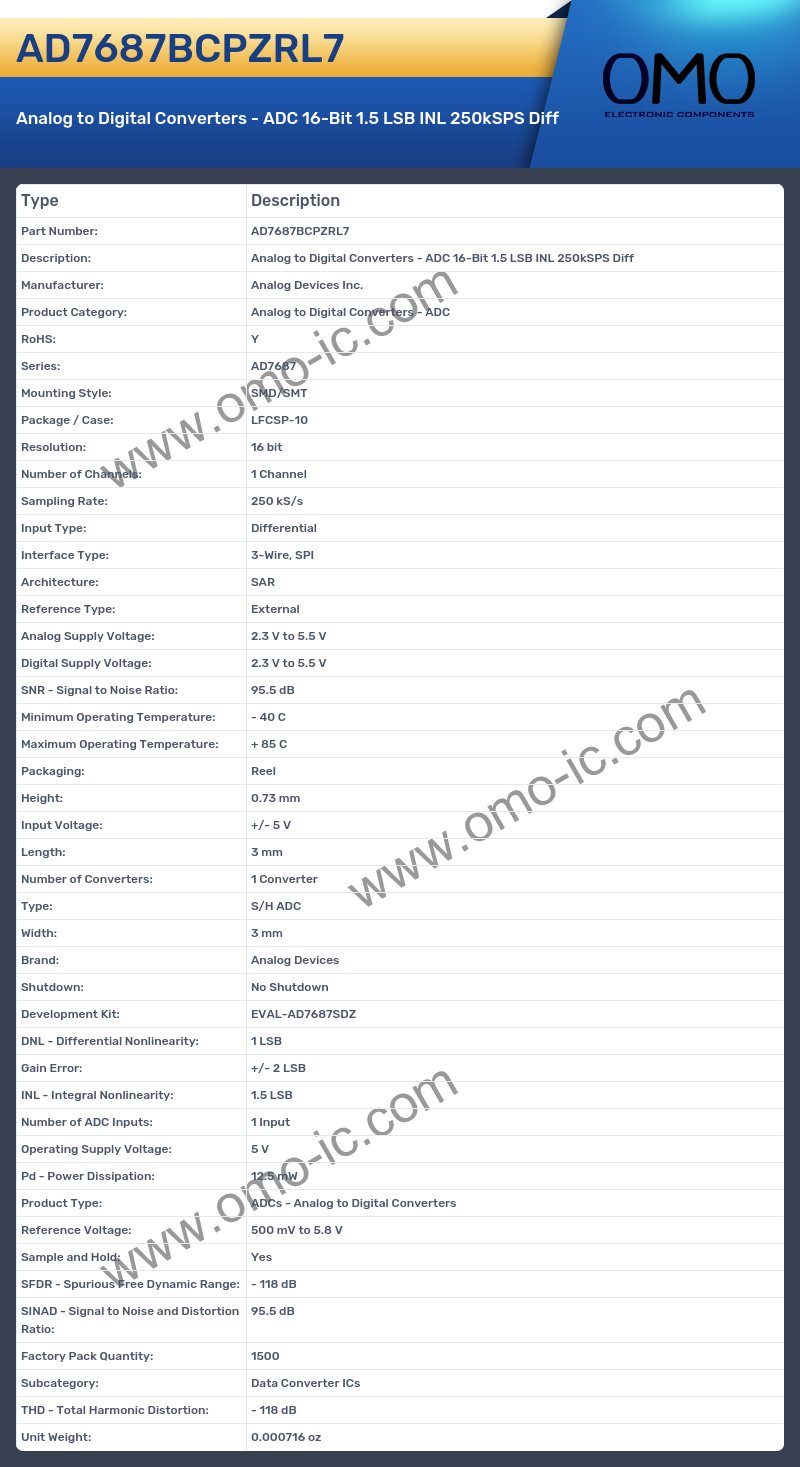

AD7687BCPZRL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7687
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-10
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 250 kS/s
• Input Type: Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.3 V to 5.5 V
• Digital Supply Voltage: 2.3 V to 5.5 V
• SNR - Signal to Noise Ratio: 95.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.73 mm
• Input Voltage: +/- 5 V
• Length: 3 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 3 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: EVAL-AD7687SDZ
• DNL - Differential Nonlinearity: 1 LSB
• Gain Error: +/- 2 LSB
• INL - Integral Nonlinearity: 1.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 12.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 500 mV to 5.8 V
• Sample and Hold: Yes
• SFDR - Spurious Free Dynamic Range: - 118 dB
• SINAD - Signal to Noise and Distortion Ratio: 95.5 dB
• Factory Pack Quantity: 1500
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 118 dB
• Unit Weight: 0.000716 oz
