AD7671ACPZ

AD7671ACPZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Differential input type Interface Type: I2C, Parallel, SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 0.83 mm. 2.5 V/5 V/10 V, n++2.5 V/n++5 V/n++10 V Input Voltage 7 mm long The output type is CMOS/TTL. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7671EDZ is a versatile development platform for hardware and software +/- 0.76 %FSR is 0.2%. INL is within +/- 2.5 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 125 mW ADCs - Analog to Digital Converters product type 260 of 100 Data Converter ICs as subcategory

AD7671ACPZ Image

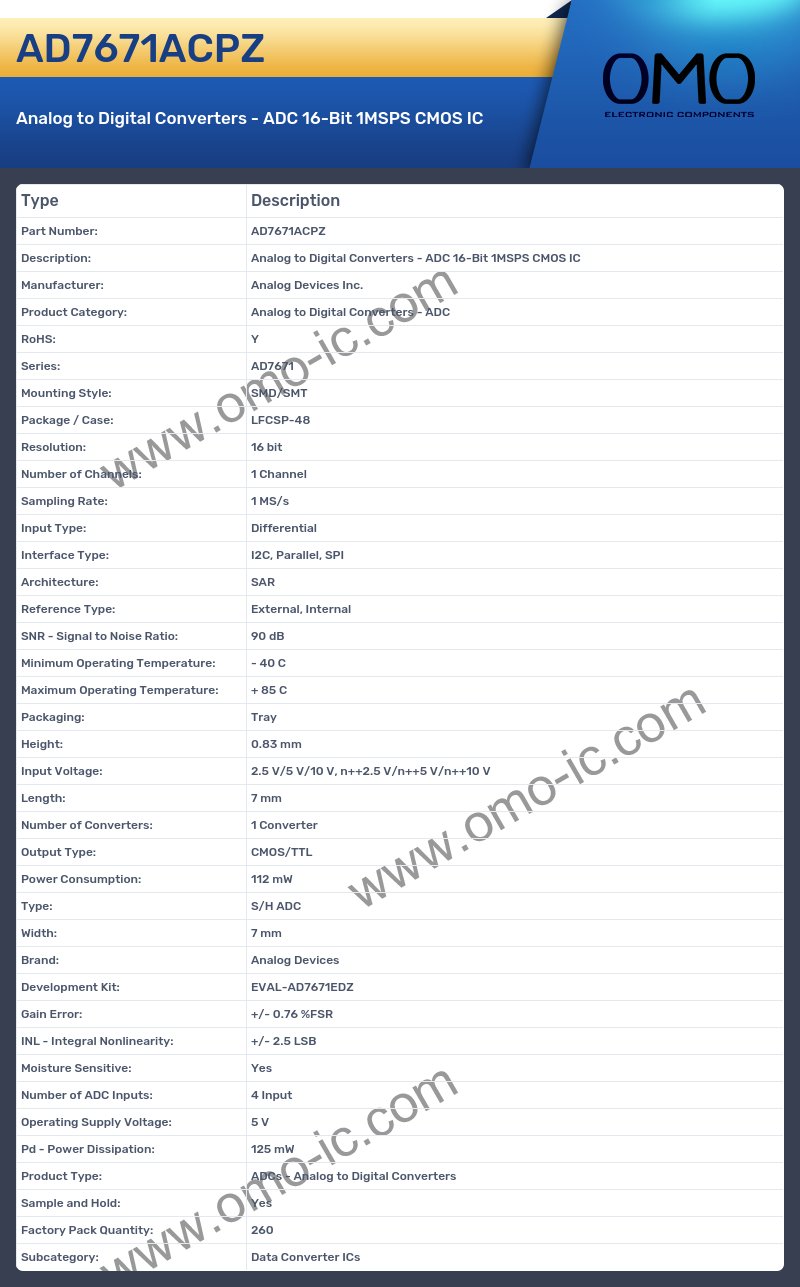

AD7671ACPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7671
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-48
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Differential
• Interface Type: I2C, Parallel, SPI
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 90 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 0.83 mm
• Input Voltage: 2.5 V/5 V/10 V, n++2.5 V/n++5 V/n++10 V
• Length: 7 mm
• Number of Converters: 1 Converter
• Output Type: CMOS/TTL
• Power Consumption: 112 mW
• Type: S/H ADC
• Width: 7 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7671EDZ
• Gain Error: +/- 0.76 %FSR
• INL - Integral Nonlinearity: +/- 2.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 125 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 260
• Subcategory: Data Converter ICs
