AD7542KN

AD7542KN Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 2 us settling time Interface Type: Parallel External is the reference type. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.56 mm. 19.43 mm long The output type is Current. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.5 LSB 4.75 V to 5.25 V operating supply voltage range 670 mW DACs - Digital to Analog Converters product type 25 of 100 Data Converter ICs as subcategory 1. 0.057419 oz of Unit Weight

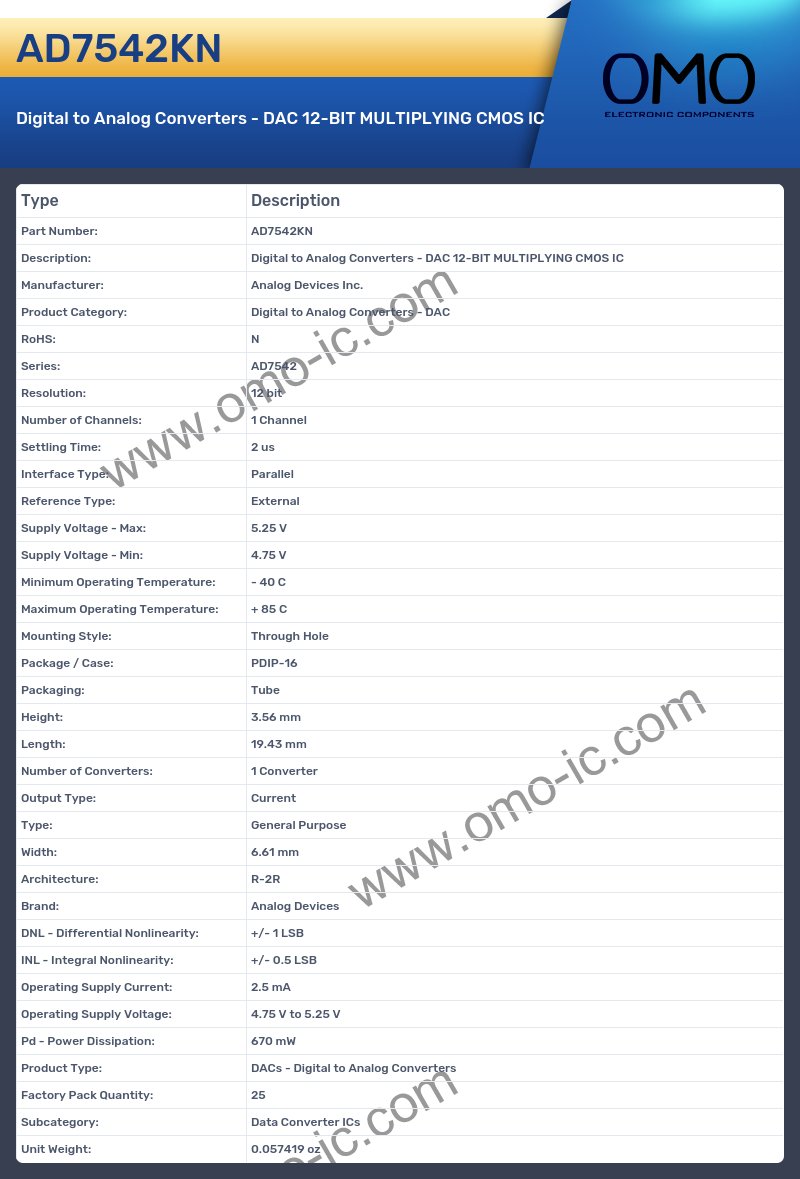

AD7542KN Image

AD7542KN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7542
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Settling Time: 2 us
• Interface Type: Parallel
• Reference Type: External
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Height: 3.56 mm
• Length: 19.43 mm
• Number of Converters: 1 Converter
• Output Type: Current
• Type: General Purpose
• Width: 6.61 mm
• Architecture: R-2R
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Operating Supply Current: 2.5 mA
• Operating Supply Voltage: 4.75 V to 5.25 V
• Pd - Power Dissipation: 670 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 25
• Subcategory: Data Converter ICs
• Unit Weight: 0.057419 oz
