AD744AQ

AD744AQ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 88 dB of 50 dB, ensuring reliable signal acquisition. This product has an 100 pA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of Through Hole. CDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Voltage Feedback Amplifier. The height of the product is 3.56 mm (Max). 10.29 mm (Max) long Precision Amplifiers Supply Type: Dual This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics AD744JR-EBZ is a versatile development platform for hardware and software The 0.01 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 500 mW (1/2 W) Precision Amplifiers product type This product has a 95 dB of 50 dB, providing reliable power supply noise rejection. 48 of 100 Amplifier ICs as subcategory 1. 0.352387 oz of Unit Weight

AD744AQ Image

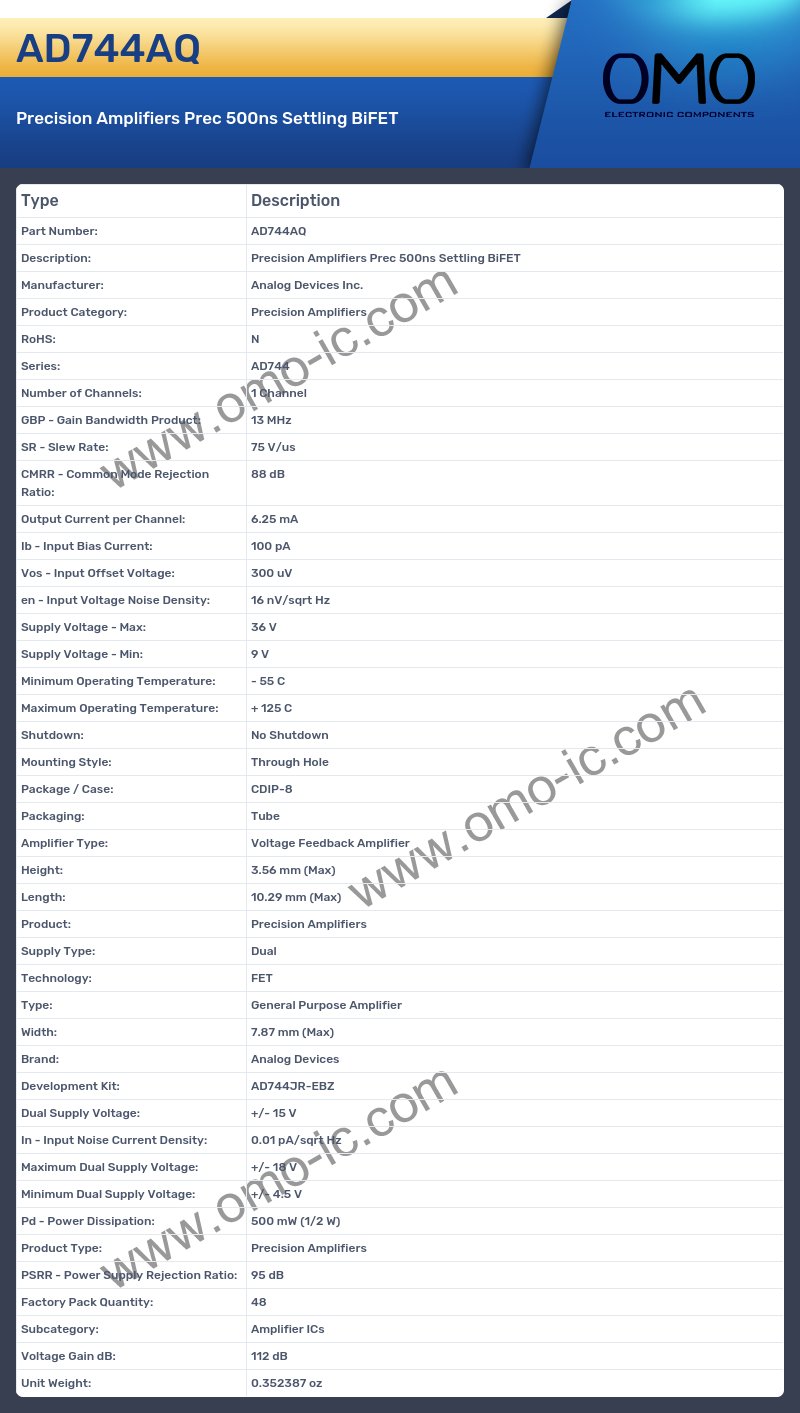

AD744AQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: N
• Series: AD744
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 13 MHz
• SR - Slew Rate: 75 V/us
• CMRR - Common Mode Rejection Ratio: 88 dB
• Output Current per Channel: 6.25 mA
• Ib - Input Bias Current: 100 pA
• Vos - Input Offset Voltage: 300 uV
• en - Input Voltage Noise Density: 16 nV/sqrt Hz
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Mounting Style: Through Hole
• Package / Case: CDIP-8
• Packaging: Tube
• Amplifier Type: Voltage Feedback Amplifier
• Height: 3.56 mm (Max)
• Length: 10.29 mm (Max)
• Product: Precision Amplifiers
• Supply Type: Dual
• Technology: FET
• Type: General Purpose Amplifier
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Development Kit: AD744JR-EBZ
• Dual Supply Voltage: +/- 15 V
• In - Input Noise Current Density: 0.01 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 95 dB
• Factory Pack Quantity: 48
• Subcategory: Amplifier ICs
• Voltage Gain dB: 112 dB
• Unit Weight: 0.352387 oz
