AD5761BCPZ-RL7

AD5761BCPZ-RL7 Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 9 us settling time Interface Type: SPI Internal is the reference type. Supply Voltage - Max: 30 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-16 package/case type is utilized by this product. Reel packaging for easy dispensing The output type is Voltage. This device belongs to the Bipolar/Unipolar DAC type. R-2R architecture Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. The 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 2 LSB Yes regarding Moisture Sensitivity 67.1 mW DACs - Digital to Analog Converters product type 1500 of 100 Data Converter ICs as subcategory THD is as low as - 87 dB.

AD5761BCPZ-RL7 Image

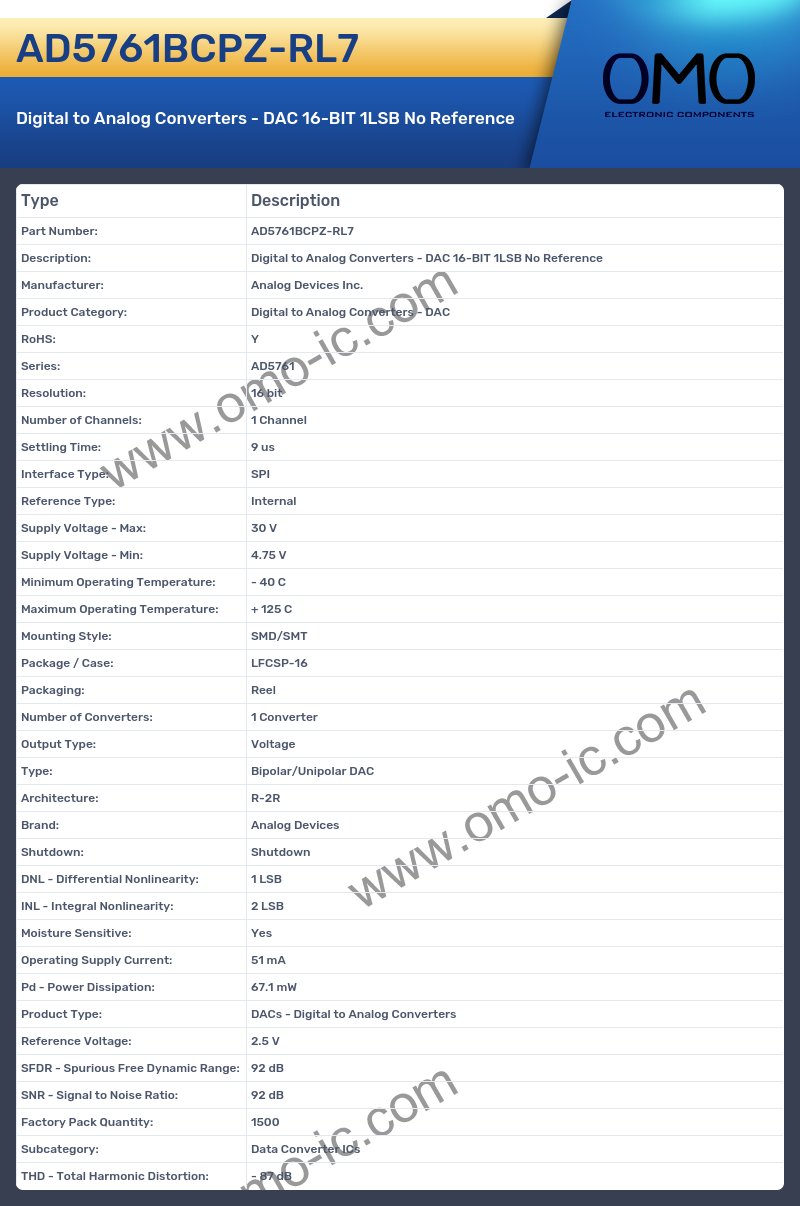

AD5761BCPZ-RL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: AD5761
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Settling Time: 9 us
• Interface Type: SPI
• Reference Type: Internal
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-16
• Packaging: Reel
• Number of Converters: 1 Converter
• Output Type: Voltage
• Type: Bipolar/Unipolar DAC
• Architecture: R-2R
• Brand: Analog Devices
• Shutdown: Shutdown
• DNL - Differential Nonlinearity: 1 LSB
• INL - Integral Nonlinearity: 2 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 51 mA
• Pd - Power Dissipation: 67.1 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: 92 dB
• SNR - Signal to Noise Ratio: 92 dB
• Factory Pack Quantity: 1500
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 87 dB
