AD526BDZ Overview

This product is manufactured by Analog Devices Inc.. The amplifier type is Variable Gain Amplifiers. This product is equipped with 1 Channel for efficient performance. This product has an 50 pA of 5 uA for precise signal processing. Supply Voltage - Max: 16.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. CDIP-SB-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.56 mm. Digital input type 21.34 mm long Supply Type: Dual This device belongs to the Programmable Gain Amplifier type. Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 12 V This product does not have a No Shutdown feature, ensuring continuous operation. Bandwidth at -3 dB is 4 MHz Gain ratio is 1 V/V to 16 V/V. 1. The maximum dual supply voltage is +/- 16.5 V. +/- 4.5 V minimum dual supply voltage 4.5 V to 16.5 V operating supply voltage range Special Purpose Amplifiers product type 23 of 100 Amplifier ICs as subcategory 1. 0.058802 oz of Unit Weight

AD526BDZ Image

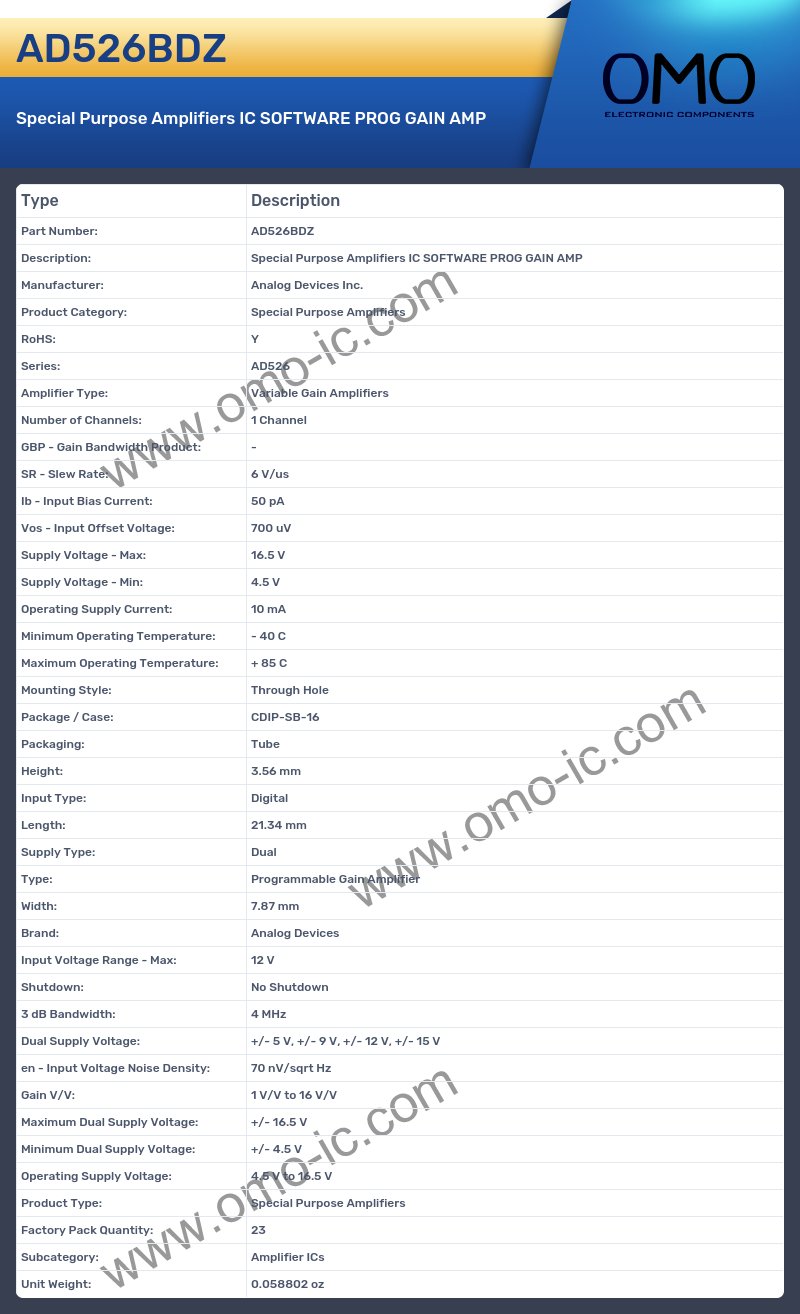

AD526BDZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Special Purpose Amplifiers
• RoHS: Y
• Series: AD526
• Amplifier Type: Variable Gain Amplifiers
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 6 V/us
• Ib - Input Bias Current: 50 pA
• Vos - Input Offset Voltage: 700 uV
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 10 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: CDIP-SB-16
• Packaging: Tube
• Height: 3.56 mm
• Input Type: Digital
• Length: 21.34 mm
• Supply Type: Dual
• Type: Programmable Gain Amplifier
• Width: 7.87 mm
• Brand: Analog Devices
• Input Voltage Range - Max: 12 V
• Shutdown: No Shutdown
• 3 dB Bandwidth: 4 MHz
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 70 nV/sqrt Hz
• Gain V/V: 1 V/V to 16 V/V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 4.5 V to 16.5 V
• Product Type: Special Purpose Amplifiers
• Factory Pack Quantity: 23
• Subcategory: Amplifier ICs
• Unit Weight: 0.058802 oz
