74LCX14TTR Overview

Product belongs to the 74LCX series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004949 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 14-TSSOP 6 is 8. 10μA maximum quiescent current. Inverter logic type 0.6V is a Logic-Level-Low; 2.2V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V 74LCX logic type High-Level-Output-Current of - 24 mA 24 mA low-level output current

74LCX14TTR Image

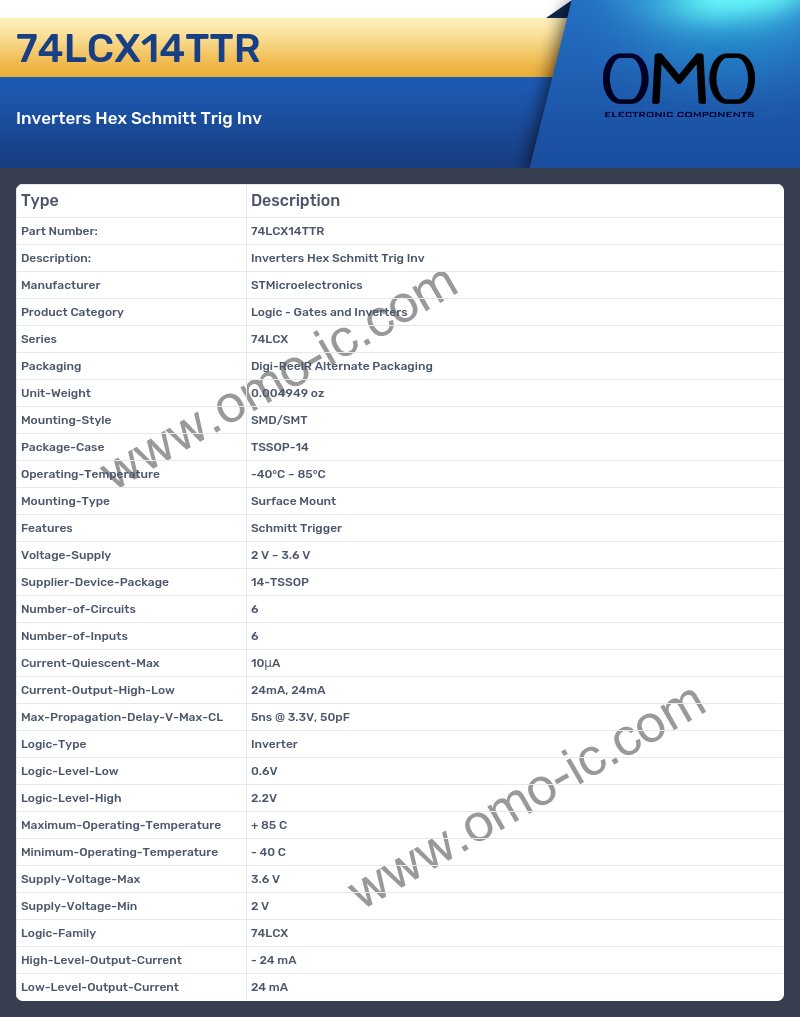

74LCX14TTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74LCX
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004949 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 2 V ~ 3.6 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 5ns @ 3.3V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.6V
• Logic-Level-High 2.2V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2 V
• Logic-Family 74LCX
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
