74AC16244DL

74AC16244DL Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-48 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 2.59 mm. 15.88 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the AC logic family. CMOS. This product is equipped with 16 for efficient performance. Maximum supply current: 8 uA This product has a - 24 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA 3 V to 5.5 V operating supply voltage range 1.2 W Buffers & Line Drivers product type The propagation delay time is 10.7 ns at 3.3 V, 7 ns at 5 V. 25 of 100 Logic ICs as subcategory 1. 0.021175 oz of Unit Weight

74AC16244DL Image

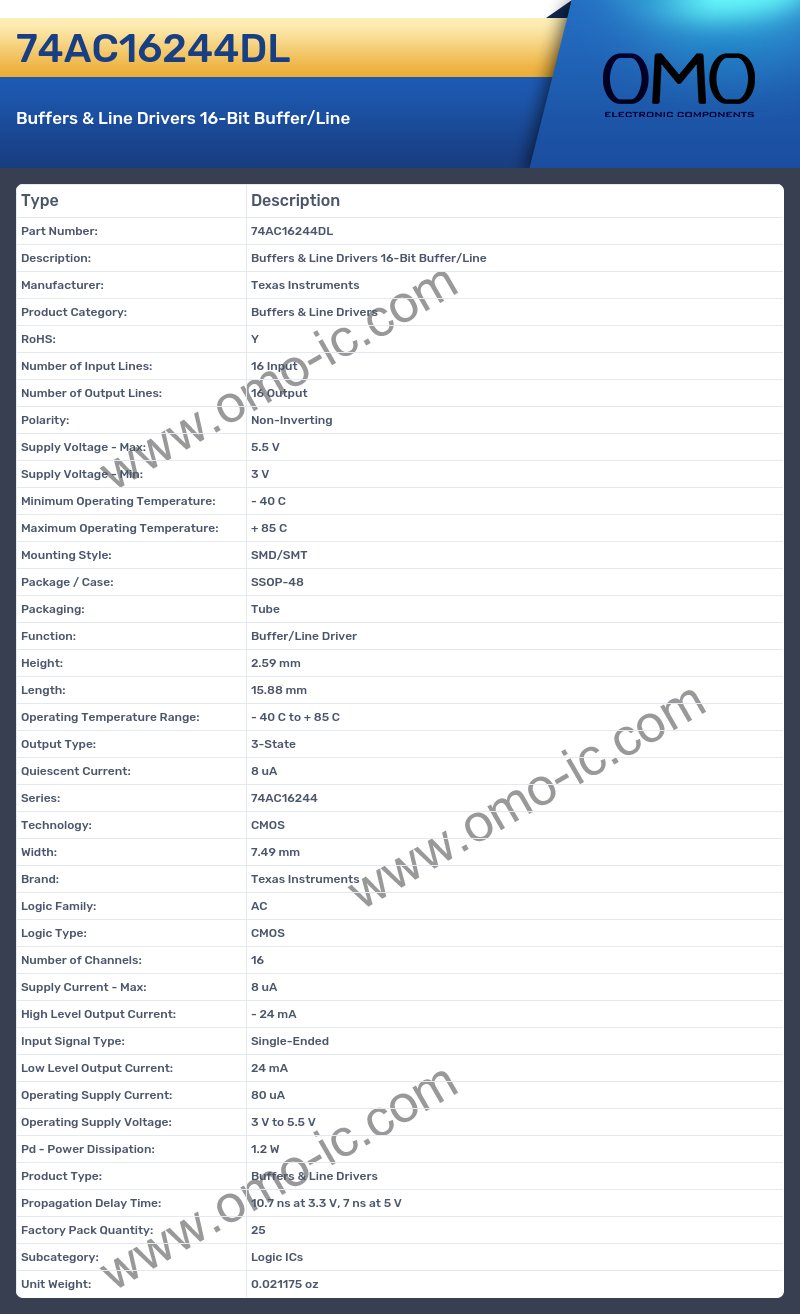

74AC16244DL Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 16 Input
• Number of Output Lines: 16 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-48
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 2.59 mm
• Length: 15.88 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: 3-State
• Quiescent Current: 8 uA
• Series: 74AC16244
• Technology: CMOS
• Width: 7.49 mm
• Brand: Texas Instruments
• Logic Family: AC
• Logic Type: CMOS
• Number of Channels: 16
• Supply Current - Max: 8 uA
• High Level Output Current: - 24 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Operating Supply Current: 80 uA
• Operating Supply Voltage: 3 V to 5.5 V
• Pd - Power Dissipation: 1.2 W
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 10.7 ns at 3.3 V, 7 ns at 5 V
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.021175 oz
