2STR2160 Overview

Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style TO-236-3, SC-59, SOT-23-3 Surface Mount mounting type Supplier device package: SOT-23-3 Configuration Single Transistor type: PNP Maximum current collector Ic is 1A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 180 @ 500mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 480mV @ 100mA, 1A Power-off control: 0.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to - 60 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 260 mV The - 60 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: - 2 A This product is capable of handling a - 1 A continuous collector current. Minimum hfe for DC collector-base gain is 45. 560 of 605.

2STR2160 Image

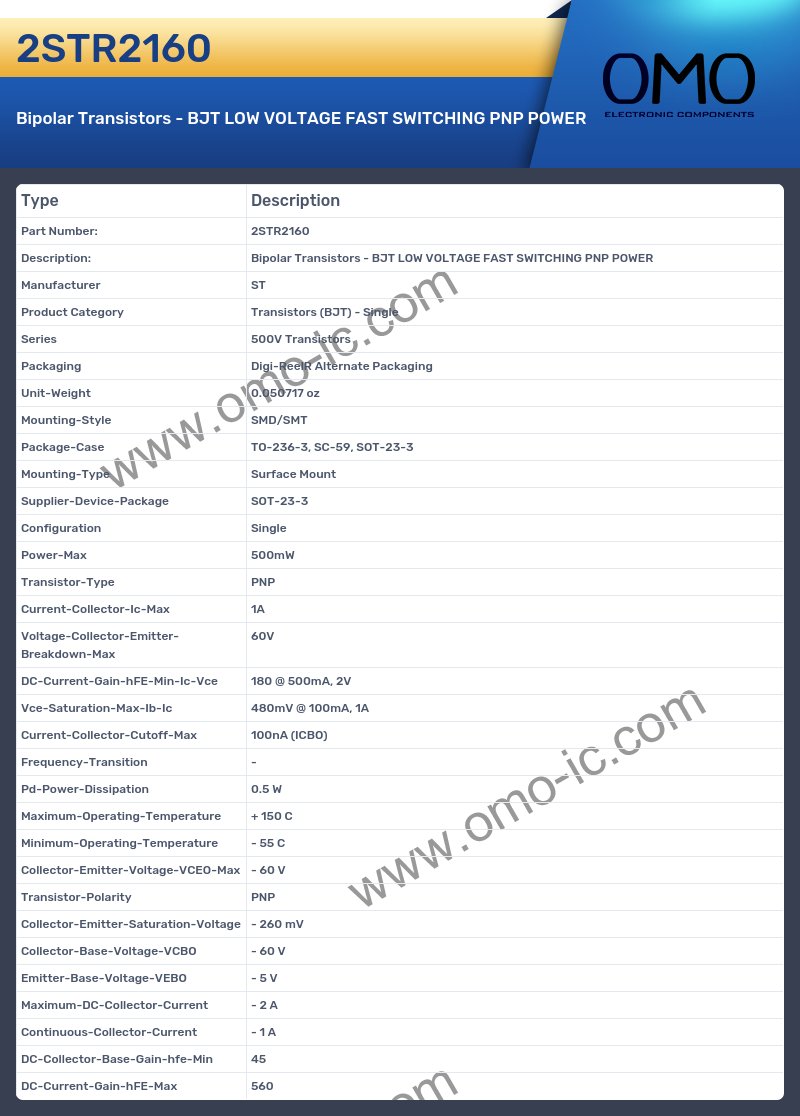

2STR2160 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case TO-236-3, SC-59, SOT-23-3
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23-3
• Configuration Single
• Power-Max 500mW
• Transistor-Type PNP
• Current-Collector-Ic-Max 1A
• Voltage-Collector-Emitter-Breakdown-Max 60V
• DC-Current-Gain-hFE-Min-Ic-Vce 180 @ 500mA, 2V
• Vce-Saturation-Max-Ib-Ic 480mV @ 100mA, 1A
• Current-Collector-Cutoff-Max 100nA (ICBO)
• Frequency-Transition -
• Pd-Power-Dissipation 0.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max - 60 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage - 260 mV
• Collector-Base-Voltage-VCBO - 60 V
• Emitter-Base-Voltage-VEBO - 5 V
• Maximum-DC-Collector-Current - 2 A
• Continuous-Collector-Current - 1 A
• DC-Collector-Base-Gain-hfe-Min 45
• DC-Current-Gain-hFE-Max 560
