| Mfr. #: | 2STR1215 |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | Bipolar Transistors - BJT Lo Vltg FAST SWITCH Hi GAIN PNP |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | 2STR1215 Ficha de datos |
Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style TO-236-3, SC-59, SOT-23-3 Surface Mount mounting type Supplier device package: SOT-23-3 Configuration Single Transistor type: NPN Maximum current collector Ic is 1.5A . Maximum collector-emitter breakdown voltage of 15V DC current gain minimum (hFE) of Ic/Vce at 200 @ 500mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 850mV @ 200mA, 2A Power-off control: 500 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 15 V The transistor polarity is NPN. The 15 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1.5 A This product is capable of handling a 1.5 A continuous collector current. Minimum hfe for DC collector-base gain is 200 at 50 mA at 2 V 200 at 0.5 A at 2 V 130 at 1 A at 2 V 80 at 2 A at 2 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

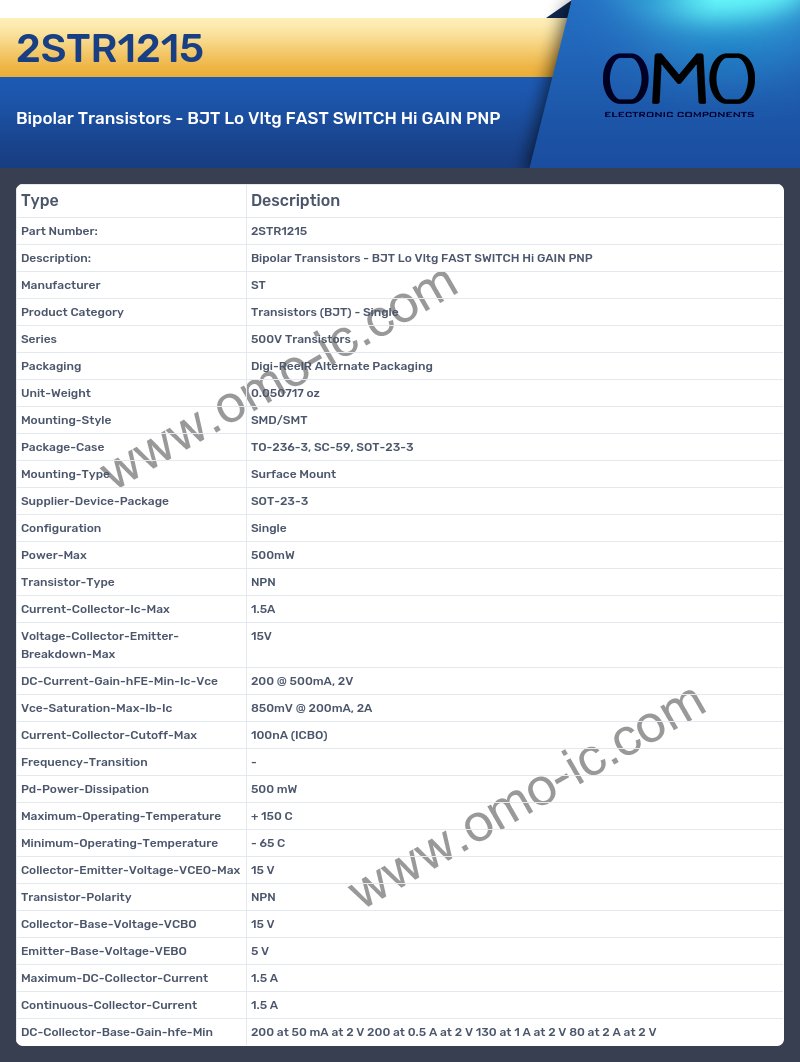

2STR1215 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 500V Transistors
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.050717 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-236-3, SC-59, SOT-23-3
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SOT-23-3.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is NPN.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 1.5A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 15V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 200 @ 500mA, 2V.
A: At what frequency does the Vce-Saturation-Max-Ib-Ic?
Q: The product Vce-Saturation-Max-Ib-Ic is 850mV @ 200mA, 2A.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 500 mW
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 15 V.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is NPN.
A: Is the cutoff frequency of the product Collector-Base-Voltage-VCBO?
Q: Yes, the product's Collector-Base-Voltage-VCBO is indeed 15 V
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is 1.5 A.
A: What is the Continuous-Collector-Current of the product?
Q: The Continuous-Collector-Current of the product is 1.5 A.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 200 at 50 mA at 2 V 200 at 0.5 A at 2 V 130 at 1 A at 2 V 80 at 2 A at 2 V.
